How to Make a Custom Text Keychain with a 3D Printer

Custom text keychains are one of the easiest ways to turn a 3D printer into a personalization tool. They’re quick to design, inexpensive to print, and make great gifts, event favors, bag tags, or small products.

In this guide, you’ll learn the complete process of making a custom text keychain with a 3D printer - from choosing the text to printing a finished, durable keychain.

What You Need #

Before you start, make sure you have:

• A short name, word, or phrase
• A tool to turn text into a 3D model (GenShapr)
• An FDM 3D printer
• PLA, PLA+, or PETG filament
• Slicing software (Bambu Studio, PrusaSlicer, Cura, etc.)
• A metal key ring or split ring

Step 1: Choose Short, Readable Text #

Text keychains work best when the lettering is bold and easy to read. Short words are stronger, print faster, and leave more room for the keyring loop.

Good text guidelines #

• Keep the text under 10-12 characters when possible
• Use a thick or rounded font
• Avoid very thin script details
• Choose letters that touch or sit on a connected backing plate
• Leave enough space around the keyring hole

Names, initials, short brand names, gamer tags, pet names, and team names all work well.

Step 2: Convert the Text into a 3D Model #

A custom text keychain is usually made from:

• A backing plate that follows the outline of the text
• Raised text on top for contrast and depth
• A keyring loop with a clean hole for hardware

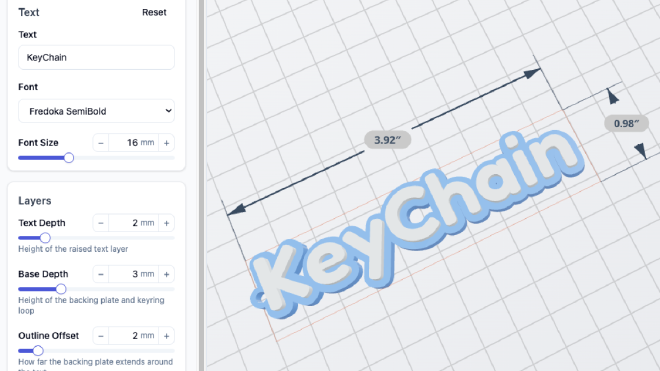

GenShapr creates this structure automatically:

1. Enter your custom text
2. Choose a font
3. Adjust the text depth, base depth, outline offset, and ring size
4. Preview the keychain in 3D
5. Export a ready-to-print 3MF file

Try the Keychain Creator

Step 3: Set the Correct Dimensions #

Good dimensions make the keychain durable without making it bulky.

Recommended dimensions #

The base should be thick enough to survive daily use, and the ring hole should be large enough for your hardware. If the hole is too small, a split ring may crack the plastic when you install it.

Step 4: Choose the Right Filament #

For most keychains, PLA or PLA+ is the easiest choice. PETG is also a good option if you want more flexibility and heat resistance.

Recommended #

• PLA or PLA+ for easy printing and crisp detail
• PETG for a tougher everyday-carry keychain
• Bright colors for the base
• White, black, or contrasting colors for raised text if using multi-color printing

Avoid #

• Brittle specialty filaments for thin keyring loops
• Flexible filaments unless you specifically want a soft keychain
• Very dark colors if you need small text to be easy to read

Step 5: Slice the Model for Printing #

Use these slicer settings as a starting point:

Printing flat on the bed gives the backing plate good strength and keeps the front face clean. For multi-color keychains, use a filament change at the start of the raised text layer or export a multi-part file if your slicer supports it.

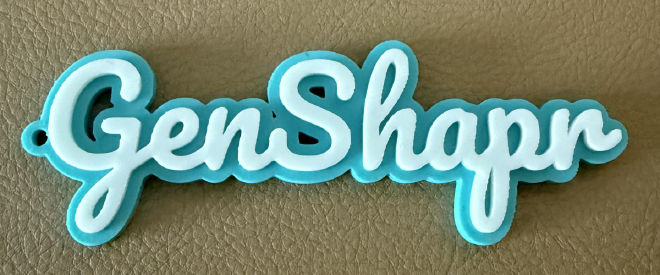

Step 6: Print, Finish, and Add Hardware #

After printing:

• Remove stringing around the letters and ring hole
• Check that the keyring hole is fully open
• Lightly sand rough edges if needed
• Attach a split ring or keychain clasp
• Flex the loop gently to make sure it feels solid

Do not force oversized hardware through a small hole. If the ring is tight, increase the hole diameter and reprint.

Common Mistakes to Avoid #

• Making the text too long
• Choosing a font with thin disconnected strokes
• Setting the base depth too low
• Making the ring hole too small
• Printing with too few walls around the loop
• Forgetting to check the final size before exporting

Why Use GenShapr for Text Keychains? #

GenShapr is built for creating personalized 3D printable designs without CAD work:

• Text-to-keychain generation in seconds
• Automatic offset backing plate
• Built-in raised text layer
• Adjustable ring size and hole diameter
• Live 3D preview with real dimensions
